European Style Double Deck Roof Roll Forming Machine

  • European Style Double Deck Roof Roll Forming Machine
  • European Style Double Deck Roof Roll Forming Machine
  • European Style Double Deck Roof Roll Forming Machine
  • European Style Double Deck Roof Roll Forming Machine

European Style Double Deck Roof Roll Forming Machine

    Payment Type: L/C,T/T,D/P,Paypal,Money Gram,Western Union
    Terms of Trade: FOB,CFR,CIF,FCA,CPT
    Min. Order: 1 Set/Sets
    Delivery Time: 30 Days
    Packaging: We have professional technicians for loading Guaranteed the goods load into container without any damage.
    Productivity: 30set
    Brand: XF
    Transportation: Ocean
    Place of Origin: Botou China
    Supply Ability: 30
    Certificate: CE/ISO
    HS Code: 8455221000
    Port: Tianjin Port

Basic Info

Model No.: 19/28Double Deck Roof Roll Forming Machine

Product Description

European Style Double Deck Roof Roll Forming Machine

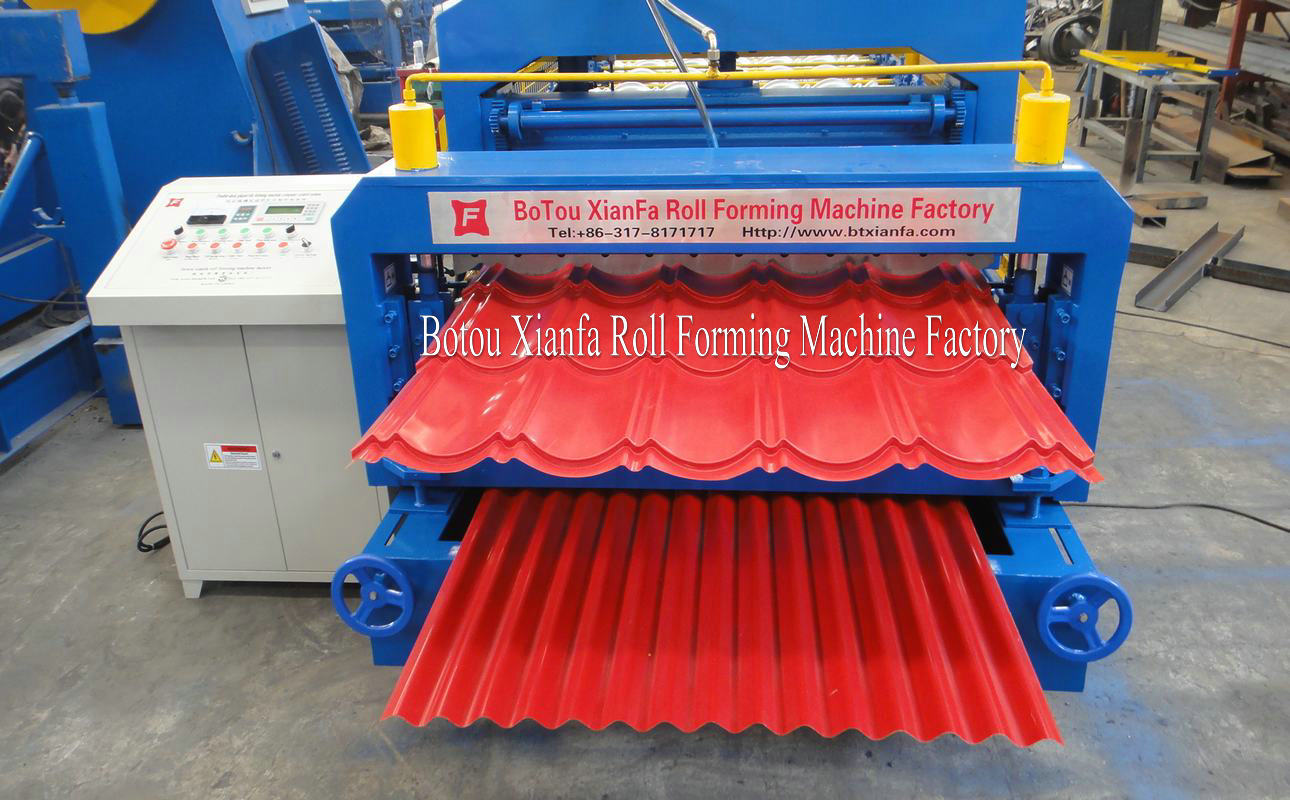

The 35-50 double deck Roll Forming Machine, the up layer is the glazed tile profile sheet, the down layer is the trapezoid profile sheet.

This machine was made for our Swedish customer.We can customize the roof sheet roll Forming Machine according to your profile drawing

Double Deck Roof Roll Forming Machine

roof panel machine

roll forming machine

Industrial Process And Component Specification

Double Layer Roll Forming Machine

Component Specification

Manual Uncoiler

Usage: It is used to support the steel coil and uncoil it in a turnable way. The steel coil is uncoiled by hand.

Loading capacity: 5T,Inner diameter: 500-508mm

Manual uncoiler

Main Roll Forming Machine

Material of rollers: 45# steel, roller surfaces polishing, hard plating.

The polished surface and the heat treatment towards the molds also can keep the molding.

Plate surface smooth and not easy to be marked when it is being stamped

Dsc07065

Hydraulic System and Computer Control Cabinet

Power: 4KW, Hydraulic oil:40#.Hydraulic oil into the hydraulic oil tank, the pump drives the cutter machine to begin the cutting job.

The target piece`s length is adjustable and digit of it can be adjusted. Computed mode has two modes: automatic and manual one.

The system is easy to operate and use. Plc: EURA

Computer Control Cabinet

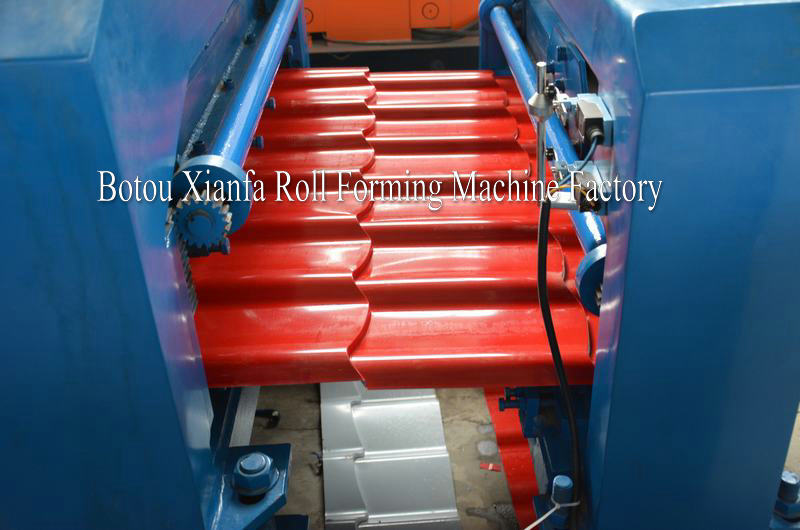

Press Form

Material of blades: Cr12,quenching treatment

Press Form

Shearing Mechanism

It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.

Material of blades: Cr12, quenching treatment.

roofing double layer roll forming machine

Output Table

It adopts welded steel and supported roller to transmit the products,which is used to collect the finished products.

XF Output Table


Packaging & Shipping

1.We have professional technicians for loading

Guaranteed the goods load into container without any damage.

2. Transportation : Machines need one 40 feet container to hold

3.Please provide us the nearest port name, we will ask shipping cost and arrange shipping for you.
