Good Price Omega Ceiling Roll Forming Machine

  • Good Price Omega Ceiling Roll Forming Machine
  • Good Price Omega Ceiling Roll Forming Machine
  • Good Price Omega Ceiling Roll Forming Machine
  • Good Price Omega Ceiling Roll Forming Machine

Good Price Omega Ceiling Roll Forming Machine

    Payment Type: L/C,T/T,D/P,Paypal,Money Gram,Western Union
    Terms of Trade: FOB,CFR,CIF,EXW,FCA,CPT,CIP
    Min. Order: 1 Set/Sets
    Delivery Time: 40 Days
    Packaging: standard overseas packing
    Productivity: 30sets/Month
    Transportation: Ocean,Land
    Place of Origin:  China
    Supply Ability: 30sets/Month
    Certificate: ISO9001: 2000, Ce
    HS Code: 8455221000
    Port: Tianjin

Basic Info

Model No.: omega ceiling

Product Description

good price omega ceiling Roll Forming Machine

specialized manufacturer of ceiling roll Forming Machine,roof sheet forming machine,tee bar ceiling machine etc.Different designs can be customized as your request.

Our omega ceiling forming machine is composed of double head Manual Decoiler,main forming machine,hydraulic cutting machine.With servo motor tracking system,max speed can be 45meters per minute.

specialized manufacturer of

Double Layer Insulted Shutter Door Forming Machine

Roller Shutter Door Roll Forming Machine

Flashing Forming Machine

Ridge Capping Forming Machine

Good Price Omega Ceiling Roll Forming Machine
Good Price Omega Ceiling Roll Forming Machine
Good Price Omega Ceiling Roll Forming Machine
Good Price Omega Ceiling Roll Forming Machine





3.Component of omega furring channel roll forming machine
1. Manual De-coiler---1Set
2.Feeding Material Device---1Set
3.Roller Former Device---1Set
4.Hydraulic Cutting Device---1Set
5.Hydraulic station---1Set
6.PLC Control Box
7.Production Racks---1Sets

Technical parameters of Furring Roll Forming Machine
1 Name of commodity & specification
Drywall Galvanized Sheet Light Steel Profiles Metal Stud/Track Roll Forming Machine ud cd uw cw profiles

2
Main motor power 4kw, 3 phase
3 Hydraulic motor power 3kw
4 Hydraulic Pressure 10-12MPa
5 Voltage 380V /3phase/ 50 HZ (or as your requirement)
6 Control System PLC Delta Inverter
7 Main Frame welded steel plate
8 Backboard Thickness 20mm
9 Driving of machine gear box and chain driving
10 Feeding Material color steel coils
11 Feeding Thickness 0.3-1.2mm
12 Feeding Width 90
13 Effective width according to your request
14 Productivity 0-25m/min
15 Roll Station 10
16 Roller Diameter 50mm
17 Roller material 45# steel
18 Cutter material Cr12 , quenched
19 Cr-Plating Size 0.05mm
20 Overall Size 3600×900×1200mm
21 Total Weight 2.7T
22 Components Manual Uncoiler-------------------1 set
Guiding Platform------------------1 set
Coil Strip Leveler------------------1 set
Main Machine of Roll Forming------1 set
Electric-Motor---------------------1 set
Cutting Device--------------------1 set
Hydraulic Station------------------1 set
PLC Control-----------------------1 set
Supporter Table-------------------1 set
23 Workflow Manual decoiling----feeding and guiding----roll forming----cut to length----run out table
24 Package nude in the container
25 Minimum order quantity 1 set
26 Payment terms T/T(30% T/T pay in advance, the remaining 70% pay before ship)
27 Delivery time 30 working days later after receiving the deposit
All technical parameters can be changed, according to user's need.

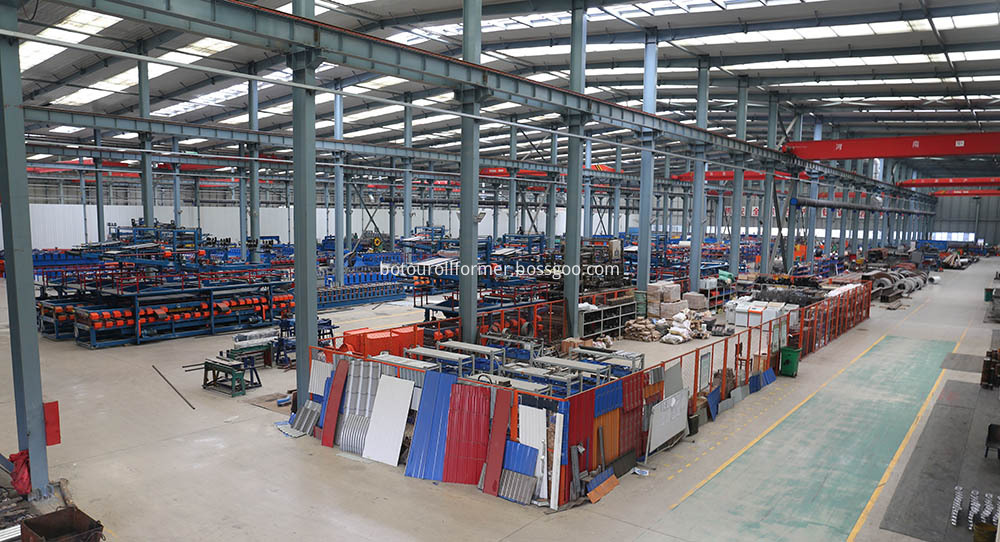

Corner Of Factory

Botou Golden Integrity Roll Forming Machine Co.,Ltd



Botou Golden Integrity Roll Forming Machine Factory is located in "the town of casting molds", enjoying convenient and highly effective transportation for being close to Tianjin Port, No.104 National Way, No.106 National Way and Jingjiu Railway.

Our technical force is abundant. Production equipment is advanced, detection means is complete.


We specialize in the professional production of various types of Roll Forming machines, and the development and production of fully automatic intelligent control roll forming machines of C-shaped steel and dust collector anode plates, and other equipment. On the basis of traditional roll forming machines, we also develop new computer fully automatic roll forming machines, roof and wall panel forming machines, glazed tile forming machines, floor bearing plate forming machines, high-speed barrier devices, double color steel tile molding machines, C and Z steel machines, arch appliances, sandwich composite plate machines, shearing machines, bending machines, and heat insulation sandwich composite machines. Our products have reached the advanced level in the same industry.


As beautiful appearance, reasonable structure, and tile-based standards of our products, they are popular among new and old customers. Products are sold to domestic enterprises.


Our factory has highly qualified and experienced professionals and highly skilled construction workers to serve you. Our factory can design and produce various kinds of special-shaped cold-formed molding equipment for different needs of the users. You are welcome to contact us for more information.
